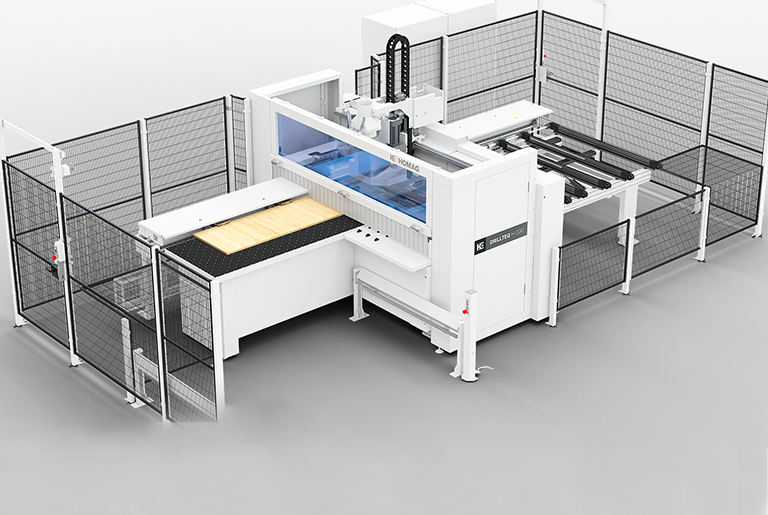

HOMAG DRILLTEQ H-230 CNC Drilling & Routing Machining Centre

Perfect for manufacturers looking to automate drilling operations while maintaining flexibility, the DRILLTEQ H-230 processes all six sides of a workpiece in a single setup. CNC-controlled clamping ensures exceptional positioning accuracy, while high-speed drilling spindles and routing capabilities deliver outstanding productivity and repeatable results.

For even greater versatility, an optional automatic tool-changing spindle allows additional routing and machining applications, making the H-230 an excellent investment for growing businesses.

Why Choose the HOMAG DRILLTEQ H-230?

Complete 6-Sided Processing

Machine all six faces of your panel in a single operation, reducing handling time, improving accuracy, and increasing throughput.

High-Speed Drilling & Routing

Powerful drilling spindles combined with routing capabilities deliver fast, accurate machining for a wide range of production requirements.

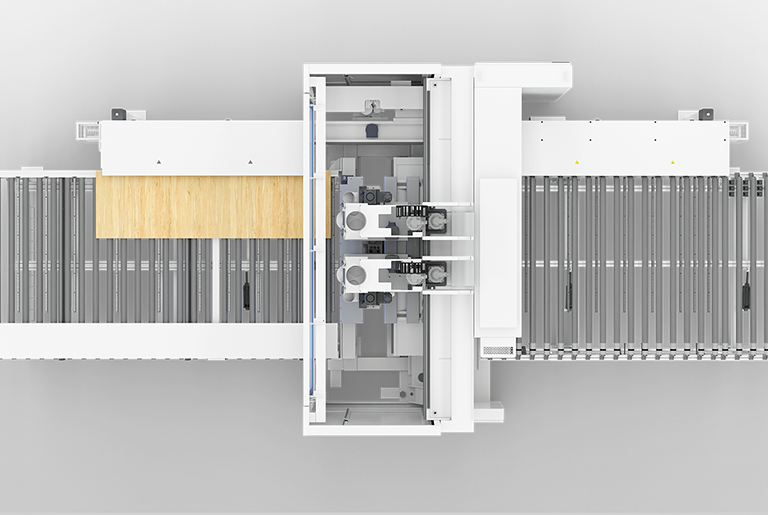

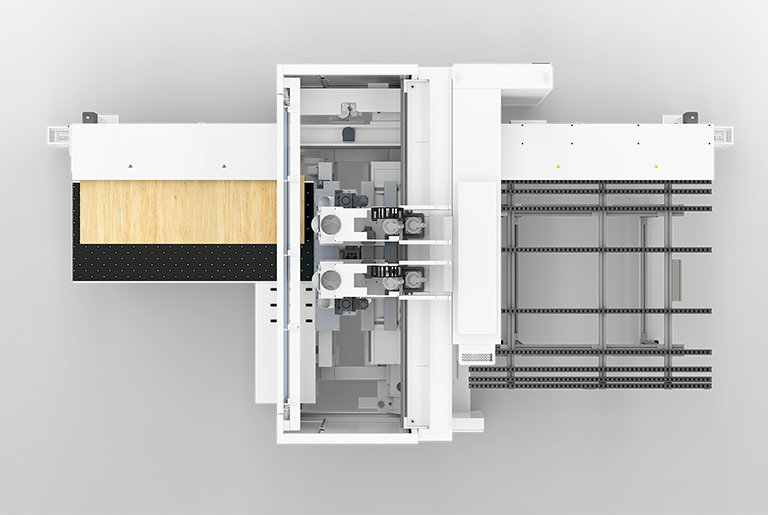

CNC-Controlled Clamping

Two CNC-controlled clamping devices automatically position each workpiece with exceptional precision, eliminating manual setup while ensuring reliable machining at every speed.

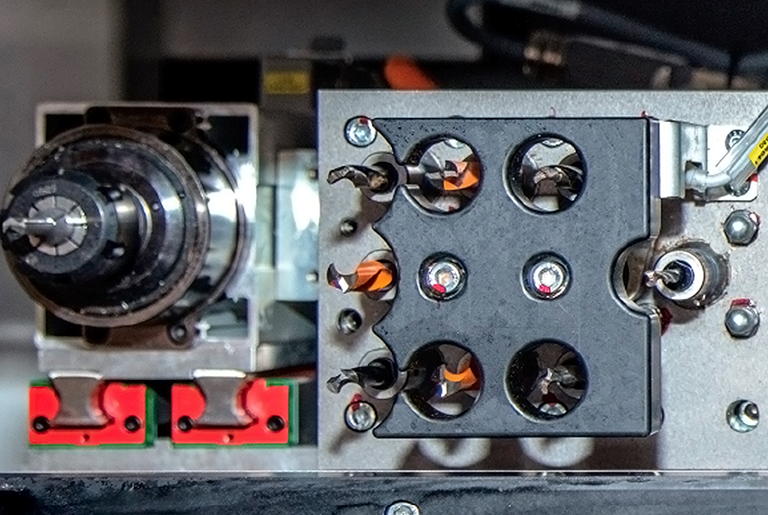

Optional 4-Position Automatic Tool Changer

Increase your machining capabilities with the optional 4-position linear tool changer. Located on the side of the machine to minimise floor space, it enables quick tool changes for greater flexibility and reduced downtime.

Precision Every Time

Advanced spindle clamping technology maintains consistent drilling depths across every workpiece, ensuring outstanding quality and repeatability.

Built to Last

The enclosed linear guide system is protected from dust and debris, providing smooth operation, reduced maintenance, and long-term reliability.

Operator Safety as Standard

The DRILLTEQ H-230 features a comprehensive safety system designed to protect operators without compromising productivity.

Safety features include:

• Three-sided protective safety fencing
• Light barrier to prevent entry into the machining area
• Additional guard above the CNC-controlled clamps
• Safe monitoring of the machine’s travel area during operation

This integrated safety concept provides confidence for operators while maintaining efficient production.

Key Features

• 6-sided machining in a single working field
• High-speed drilling and routing technology
• Two CNC-controlled clamping devices for precise positioning
• Processes workpieces from 250–3,000 mm in length
• Handles panel widths from 40–1,250 mm (model dependent)
• Material thickness from 8–40 mm
• Accurate drilling depth through advanced spindle clamping technology
• Enclosed linear guide system for long service life
• Optional automatic tool-changing spindle for expanded machining capabilities
• Compact footprint with excellent production efficiency

Technical Specifications

Is the HOMAG DRILLTEQ H-230 Right for Your Business?

Whether you manufacture kitchens, fitted furniture, office furniture, shopfitting, or bespoke joinery, the DRILLTEQ H-230 provides an affordable route into high-performance 6-sided CNC machining.

With faster production, greater flexibility, improved accuracy, and reduced manual handling, it’s an ideal solution for businesses looking to increase productivity while maintaining the quality expected from HOMAG machinery.

Request a Quote

Interested in the HOMAG DRILLTEQ H-230?

Speak with the team at Electro-Tech Machinery today to discuss your production requirements, arrange a machine demonstration, or request a competitive quotation.

Contact us today to discover how the DRILLTEQ H-230 can transform your manufacturing process
