Leadermac SMARTMAC 4 Head Moulder

The SMARTMAC 4 Head Moulder delivers outstanding stability, precision, and reliability thanks to its heavy-duty cast iron frame and high-quality spindle design. Built for years of deformation-free operation, it’s an ideal solution for workshops looking to improve productivity while maintaining excellent moulding quality.

Outstanding Features

• Sound & Safety Enclosure – Fully enclosed machine for safer, quieter operation

• High Feed Speed – Up to 24 m/min for faster throughput

• Heavy Cast Iron Frame – One-piece construction for maximum rigidity and vibration control

• Hard-Chromed Feeding Table – 0.3 mm chrome coating for long-lasting wear resistance

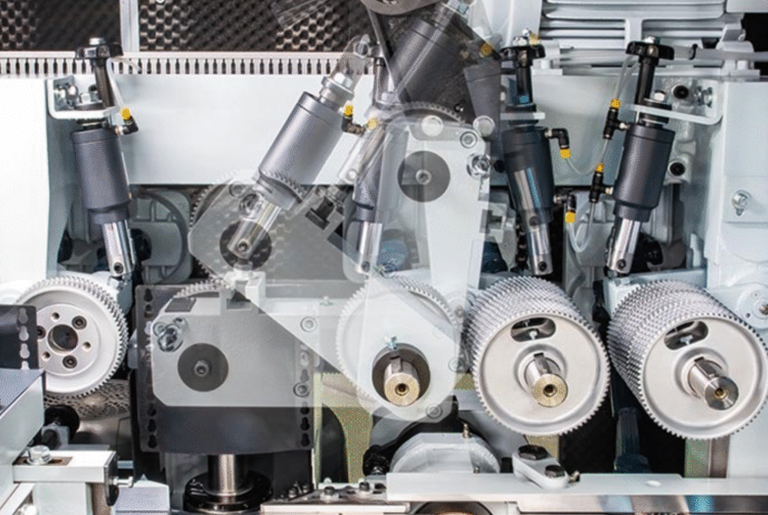

• 3-Stage Roller Pressure System – Pneumatic adjustment compensates for varying timber thickness

• Universal Joint Roller Drive – Chain-free system for accuracy, low maintenance, and longer service life

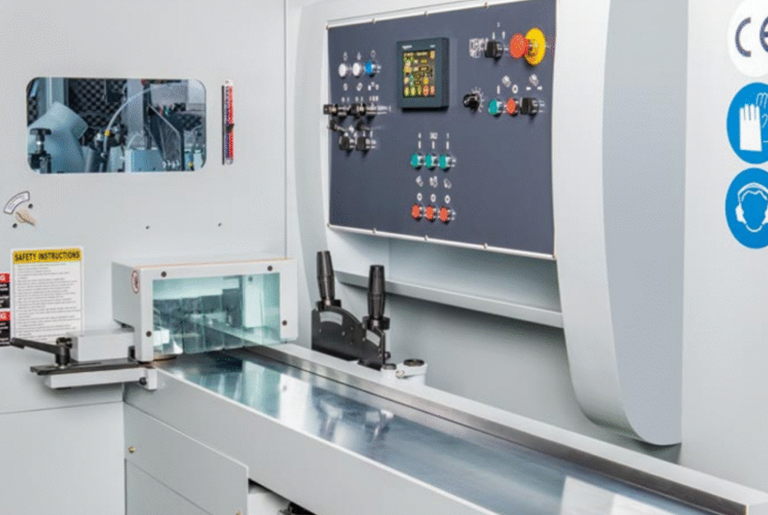

• 2m Infeed Table – Adjustable edge-jointing fence with engraved positioning marks

• Manual Lubrication Point – Easy maintenance from one oiling location

• Power-Driven Feed Rollers – Steel rollers before top spindle, rubber rollers after for smooth feeding

• CE Certified Machine – Meets European safety standards

Includes toolbox, maintenance manuals, electrical diagrams, parts list, and pressure controller as standard.
Cutter tools not included.

Standard Machine Specification – SMARTMAC 423S

• Voltage: 50Hz / 415V

• Working Width: 15 – 230 mm

• Working Thickness: 10 – 125 mm

• Minimum Workpiece Length: 600 mm

• Minimum Continuous Feed Length: 260 mm

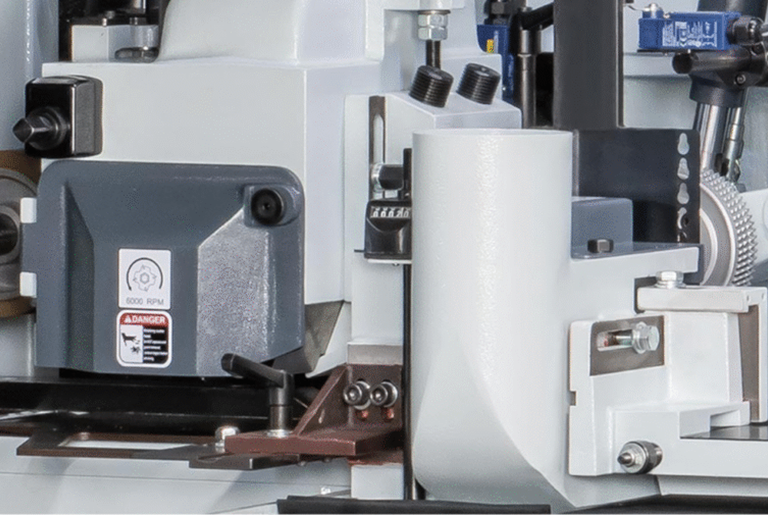

• Spindle Diameter: 40 mm

• Spindle Speed: 6,000 RPM

• Feed Speed: 6 – 24 m/min

Spindle Configuration

• 1st Bottom Spindle – 7.5 HP (125–160 mm cutting circle)

• Right & Left Spindles – 10 HP (112–180 mm cutting circle)

• Top Spindle – 7.5 HP (112–200 mm cutting circle)

Additional Motors:

• Feed Motor – 5 HP inverter

• Up/Down Motor – ½ HP

Spindle adjustment range:

• Vertical: max 20 mm

• Horizontal: max 20 mm

Why Buy Leadermac from Electro-Tech Machinery?

✔ Irish supplier with decades of woodworking expertise
✔ Installation, training & after-sales support across Ireland
✔ Spare parts & servicing available
✔ Advice tailored to joineries, cabinetmakers & manufacturers

Whether you’re upgrading from a spindle moulder or increasing production capacity, the SMARTMAC 4 Head Moulder delivers consistent quality and dependable performance.
