Leadermac Straight Grinder G320B

Boost tooling precision and workshop efficiency with the Leadermac Straight Grinder G320B, now available from Electro-Tech Machinery. Designed for automatic face grinding of solid cutters, the G320B delivers high-accuracy sharpening with PLC-controlled automation—perfect for joinery shops and woodworking manufacturers who demand consistent cutting quality.

Why Choose the Leadermac G320B Straight Grinder?

The G320B combines fully automatic grinding control with simple touchscreen operation to reduce manual setup time and improve cutter consistency. Its robust hydraulic slide system and precision PLC control ensure smooth, stable grinding results every time—extending tool life and improving machining finish.

Key Features of the Leadermac G320B

• Fully automatic cutter grinding with PLC control

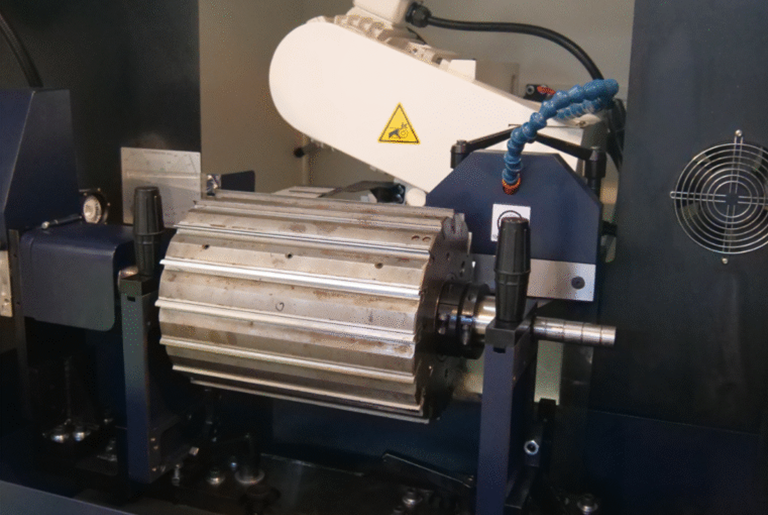

• Designed for face grinding solid cutters

• Automatic cutter rotation for consistent accuracy

• PLC-controlled grinding head movement

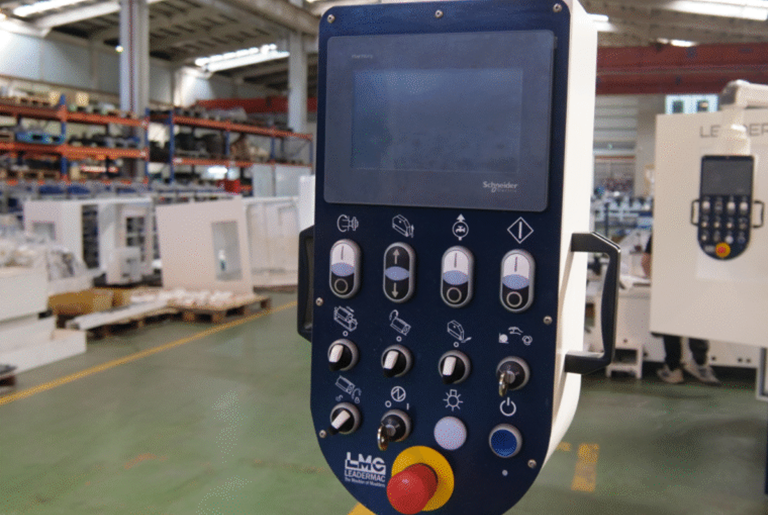

• Touchscreen interface for easy parameter setup

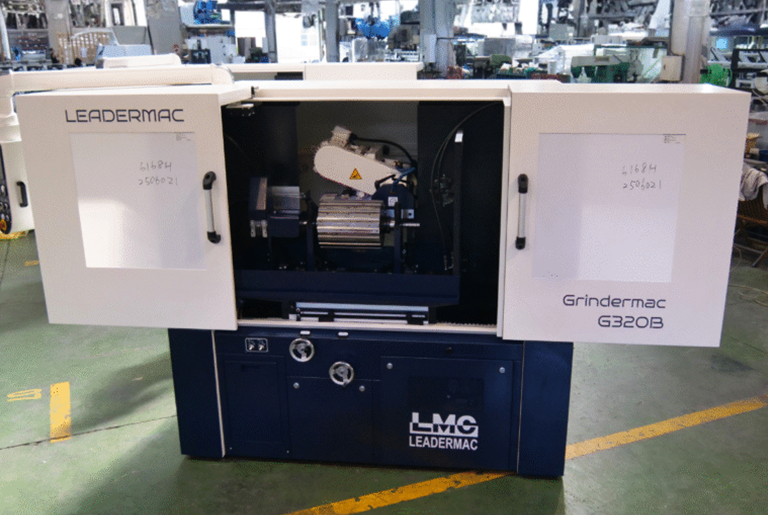

• Sliding safety doors with linear guides

• Hydraulic slide movement for smooth, stable operation

• Fast cutter head changeover for increased productivity

• Multiple micro-switch safety protections

• Fully enclosed safety guarding

• Movable working light for improved visibility

• Max cutter head weight: 120 kg

Technical Specifications – Leadermac G320B

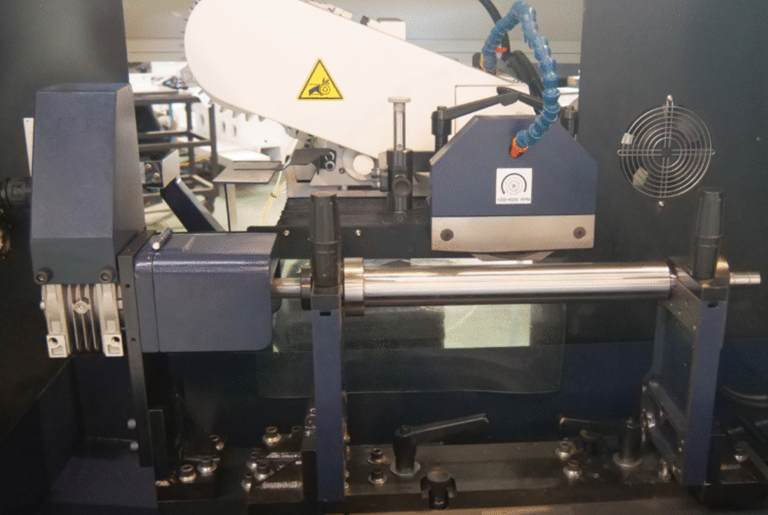

• Grinding Arbor Options: Ø40 mm / Ø50 mm / Ø1-13/16″

• Max Cutterhead Length: 320 mm

• Max Cutting Circle: 320 mm

• Min Cutting Circle: 125 mm

• Grinding Wheel: Ø175 × Ø25 mm

• Grinding Wheel Speed: 3000 rpm

• Grinding Wheel Drive: 2 HP

• Hydraulic Motor: 1 HP

• Coolant Pump: ¼ HP

• Tank Capacity: 16–28 litres

• Voltage: 50Hz / 415V

Optional upgrades include servo-motor feedwork, variable spindle speed, and enhanced sliding door configurations.

Ideal Applications

• Joinery workshops

• Furniture manufacturers

• Door and window production

• Timber moulding and flooring plants

• Tooling maintenance departments

Buy Leadermac Straight Grinder in the UK & Ireland

As an authorised supplier, Electro-Tech Machinery provides:

✔ Expert advice on woodworking machinery
✔ Installation and operator training
✔ Reliable after-sales support
✔ Finance options available

Upgrade your cutter maintenance process with the Leadermac G320B Straight Grinder and keep your woodworking production running at peak performance.

Contact Electro-Tech Machinery today for expert guidance on Leadermac machinery.
