Used Homag BHP 100 / Vantage 710

Specification

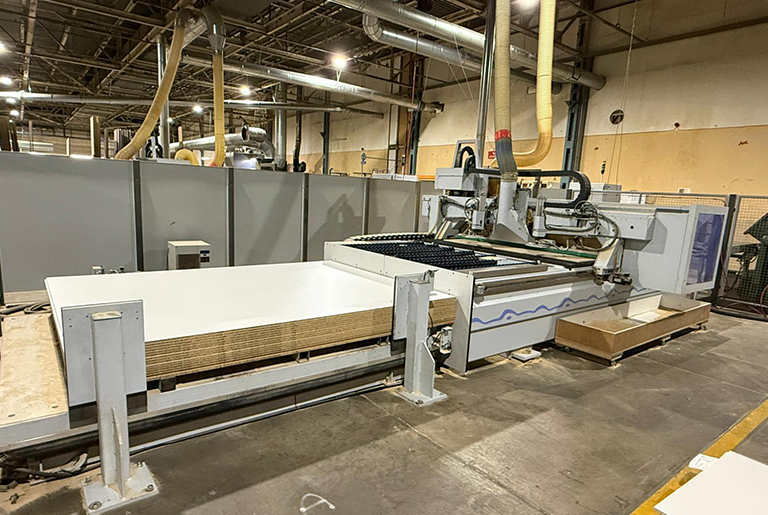

Handling concept 2 consisting of:

• Lift table

• Section bridging by roller conveyor

• Vacuum arm for positioning material

• Pneumatically lowerable stop fences

• Push-off device

• Dust extraction hood for protective boards

• Dust extraction channel at outfeed (from below)

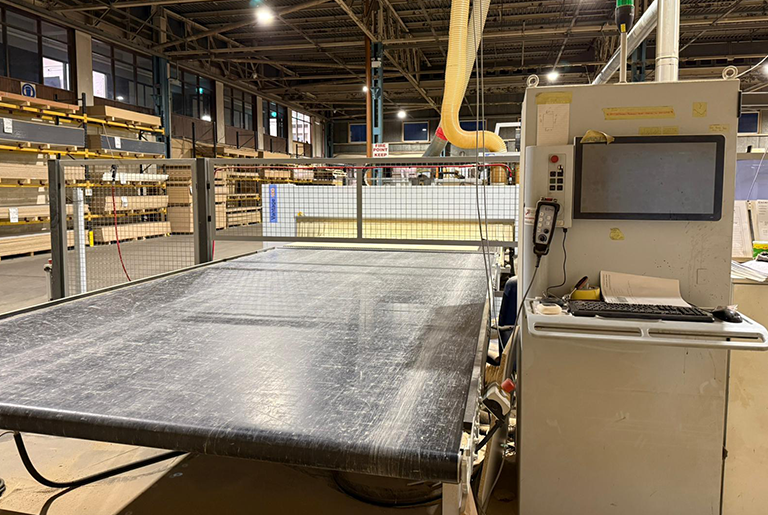

• Transport belt 4050 x 2250 mm

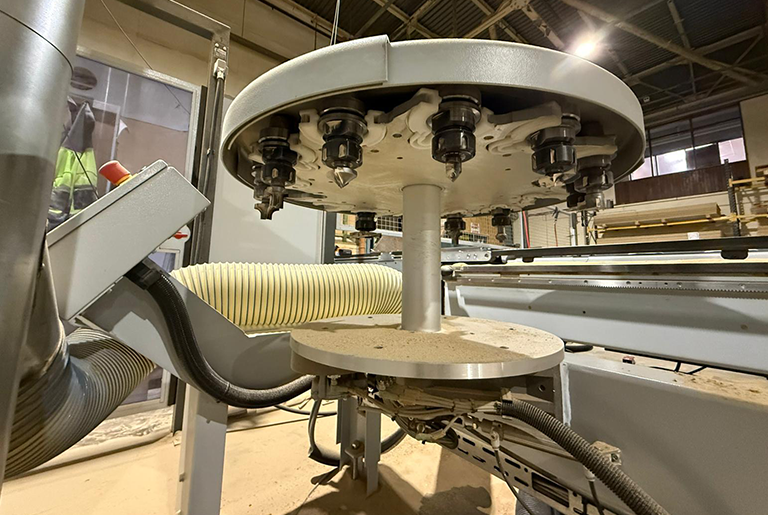

• 14-position tool changer

• Simultaneous push-off and infeed

Table Dimensions

• Length: 3100 mm

• Width: 2250 mm

• Thickness: 100 mm

Feed Speeds

• X/Y: 96 m/min

• Z: 20 m/min

Vacuum System

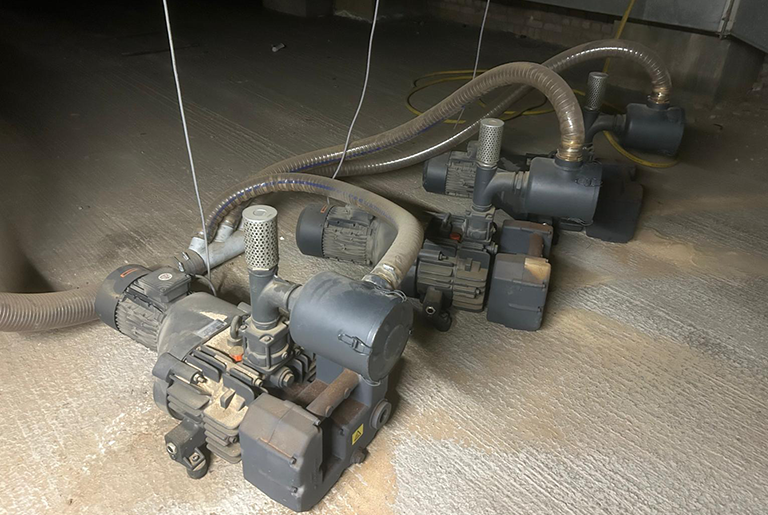

• 3 vacuum pumps with a total capacity of 900/1080 m³/h

Stops

• 4 pneumatically lowerable stops

Spindle & Interfaces

• 9 kW main spindle – liquid cooled

• Aggregate interface for main spindle C-axis

• Flex 5 interface for C-axis

Additional Features

• Air jet integrated in extraction hood

• 12 vertical drilling spindles with quick-change system

• Grooving saw swivelling 90°

• Tool-change assistance device

• Tool-length control

• PowerTouch with power control hardware

• CE

• Weeke Quality Pack

• Energy Saving Mode
