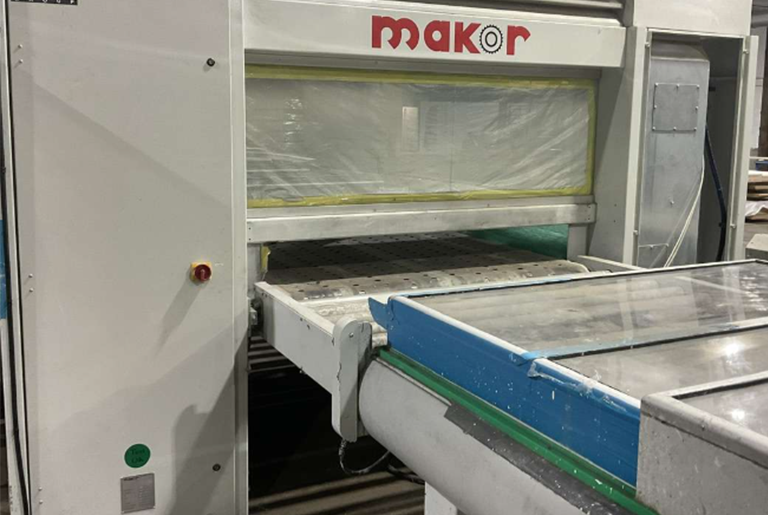

Used Makor START ONE Spray Coating Machine

The Makor START ONE USED spray coating machine is a reliable and cost-effective solution for manufacturers looking for high-quality used woodworking machinery. Manufactured in 2016, this used automatic spray machine is ideal for low-volume production and is designed to apply water-based or solvent-based paints and glues to veneered components and PVC panels.

This used Makor spray coating machine is particularly well-suited to companies upgrading from manual finishing or investing in automatic coating equipment for the first time. Benefits include increased productivity, reduced paint usage, uniform coating results, and consistently high-quality finishes — all with a lower capital investment than new machinery.

PLC Control System

The machine is controlled via an advanced PLC system with an intuitive user interface, allowing easy management of all operating parameters. Integrated sensors automatically detect panel dimensions, optimising paint consumption and minimising waste — a key advantage when purchasing used finishing machinery.

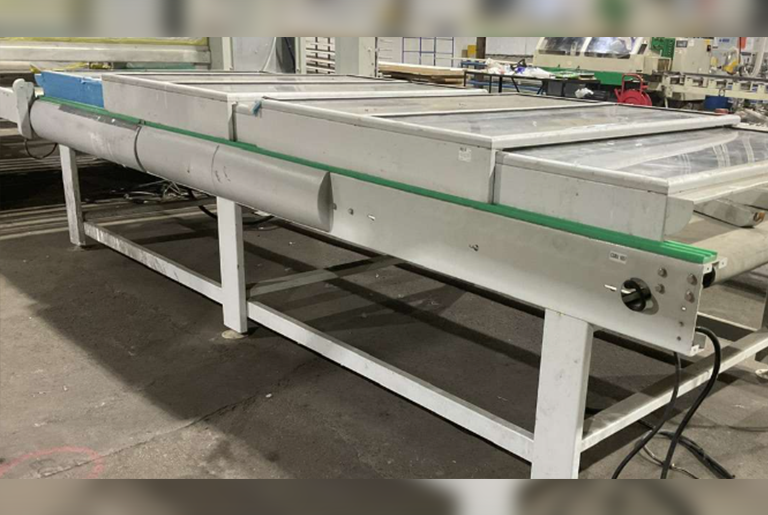

Self-Cleaning Paper Transport System

The paper transport system makes this used spray coating machine self-cleaning, eliminating cleaning downtime and reducing ongoing maintenance costs. Roller replacement is quick and straightforward, with no need for manual cleaning and no production stoppages.

Spraying Unit

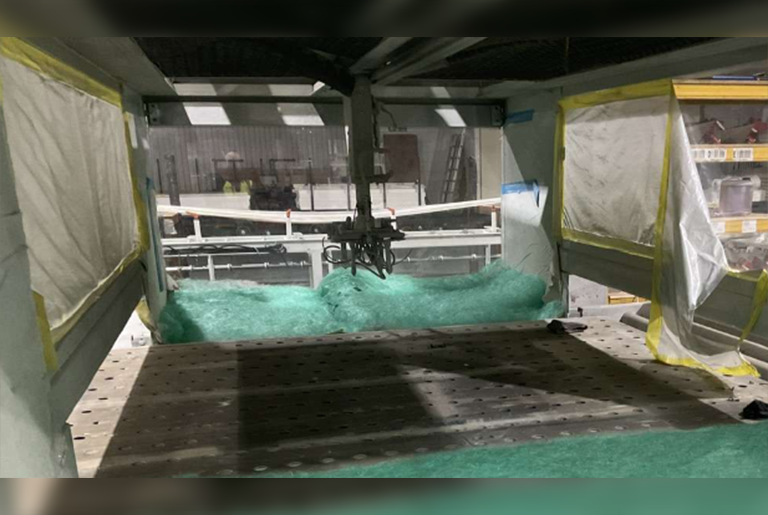

The spraying unit features a single oscillating arm with electronically controlled movement, ensuring smooth, consistent application across the full working width.

• Capacity for up to 4 spray guns

• 2 high-pressure feed circuits

• Quick-coupling plate for fast gun changes or circuit switching

• Supplied with 1 gun holding plate

• Version: V#4Z022P

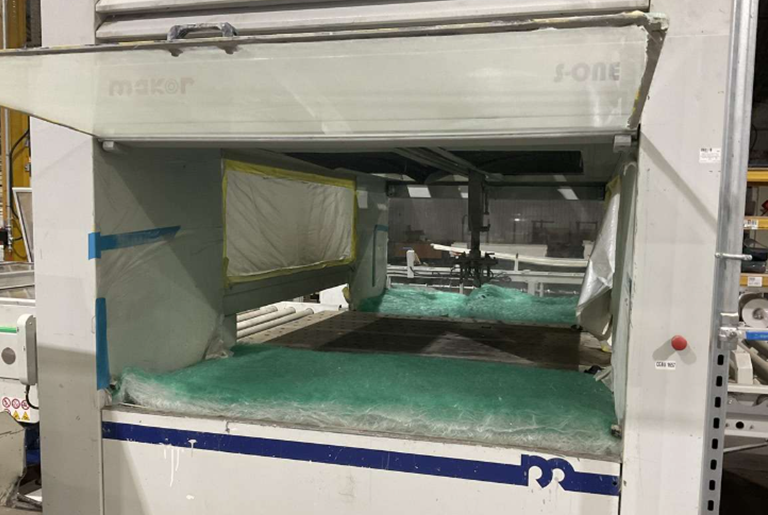

Air Flow & Filtration

The enclosed spray booth provides effective air flow control, preventing overspray dispersion and maintaining a clean working environment. A large, high-efficiency filtration surface ensures compliance with environmental regulations. Independently adjustable exhaust fans maximise filter performance, with easy access from both sides for maintenance.

Technical Specifications

• Feed speed: 1–4.5 m/min

• Air capacity: 10,000 m³/h

• Total installed power: 7 kW

• Working height: Approx. 900 mm
